Driver MULTICONTOUR Seat Compressor -V439-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the seat. Refer to SEAT, REMOVING AND INSTALLING .

-- Remove the seat belt latch. Refer to FRONT SEAT BELT LATCHES, REMOVING AND INSTALLING .

-- Remove the tunnel-side trim. Refer to TUNNEL-SIDE TRIM, REMOVING AND INSTALLING .

-- Remove the sill-side trim. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING .

-- Remove the backrest. Refer to BACKREST, REMOVING AND INSTALLING .

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING .

-- Remove the cover and cushion from the backrest. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

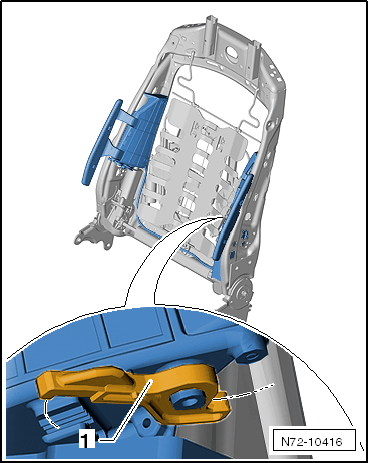

-- Open the lower locking bar -1- on both sides of the backrest.

Fig 1: Lower Locking Bar -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

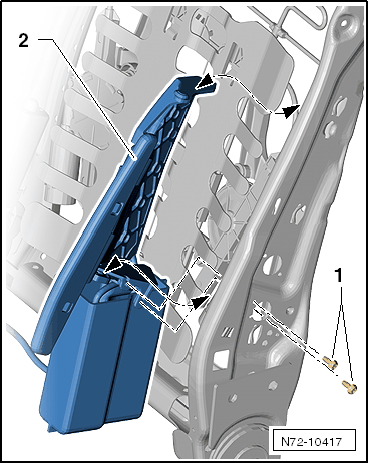

-- Remove the two bolts -1- (8 Nm) on both sides of the backrest and disconnect the connector to the Driver Multicontour Seat Compressor -V439-.

Fig 2: 2 Bolts -1- On Both Sides Of Backrest

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Detach the Driver Multicontour Seat Compressor -V439- including both adjusting units -2- from the backrest.
