Drawer, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the seat. Refer to SEAT, REMOVING AND INSTALLING .

-- Open the drawer.

-- Remove the bolts -1- and -2- (7.5 Nm  ).

-- Press the drawer slightly backward and remove from the mounts.

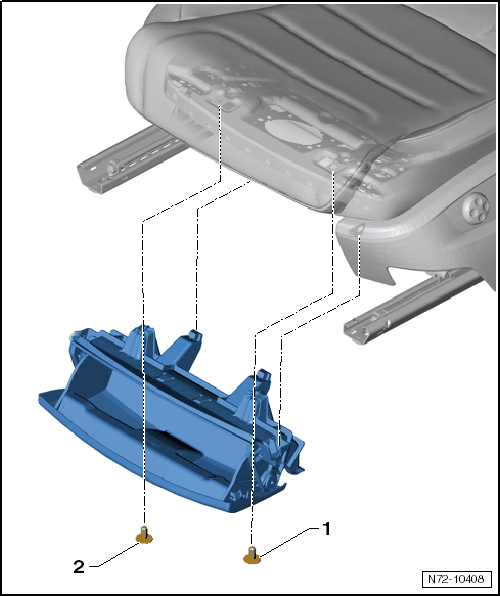

Fig 1: Drawer
GWWN72-10408Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
