Backrest Cushion Fan, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the backrest cover. Refer to BACKREST COVER, ASSEMBLY OVERVIEW .

-- Pull the bonded mat -1- off of the backrest cushion, remove the fan -2- and disconnect the fan harness connector.

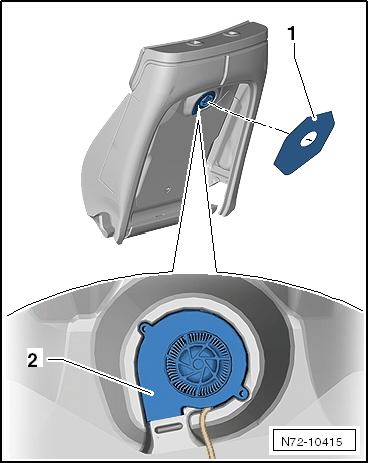

Fig 1: Fan Harness Connector
GWWN72-10415Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
