Driver Front Airbag Crash Sensor -G283-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the battery. Refer to BATTERY .

-- Remove the bolt -3- (8 Nm  ).

-- Release and disconnect the connector -1- from the Driver Front Airbag Crash Sensor -G283- -2-.

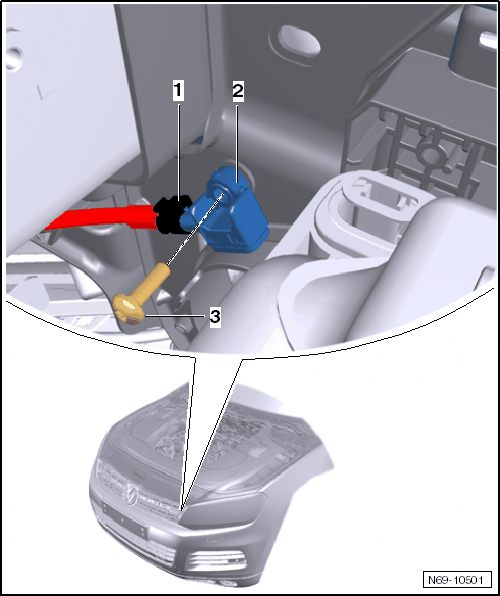

Fig 1: Identifying Driver Front Airbag Crash Sensor
GWWN69-10501Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
