Front Side Airbag, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Always read the General Safety Precautions before working on airbags, belt tensioners and battery cut-out units (pyrotechnical components). Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, GENERAL SAFETY PRECAUTIONS .

-- Remove the seat. Refer to SEAT, REMOVING AND INSTALLING .

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the seat belt latch. Refer to FRONT SEAT BELT LATCHES, REMOVING AND INSTALLING .

-- Remove the tunnel-side trim. Refer to TUNNEL-SIDE TRIM, REMOVING AND INSTALLING .

-- Remove the sill-side trim. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING .

-- Remove the backrest. Refer to BACKREST, REMOVING AND INSTALLING .

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING .

-- Remove the cover and cushion from the backrest. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

-- Remove the bolt -2- (9 Nm ).

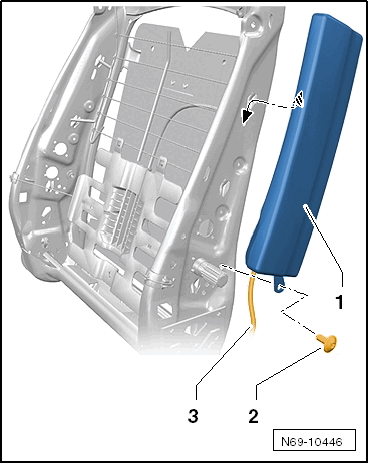

Fig 1: Identifying Front Side Airbag

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the side airbag -1- from backrest frame.

-- Thread the wiring harness -3- through the corresponding openings in the backrest frame.
