Front Passenger Occupant Detection Sensor -G128-, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Press in and align the Front Passenger Seat Occupant Sensor -G128- -1- into the corresponding recesses from the cushion.

CAUTION:

Ensure that the distance from the sensor to the positioning aids is constant.

-- Secure the aligned sensor with the right hand, remove the films -arrows- and bond the sensor -1- to the cushion.

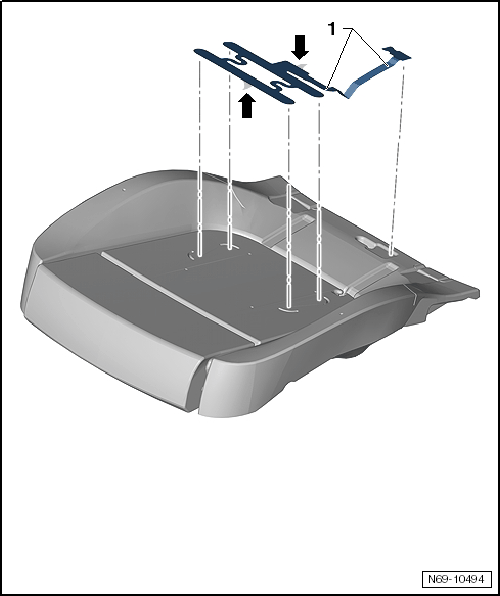

Fig 1: Identifying Front Passenger Seat Occupant Sensor (1 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing of remaining components is reverse of removal.

-- After installation, perform a function check with the ignition on.
