Driver Side Airbag Unit, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Insert the airbag connector -1- in the connector coupling. The airbag connector must engage audibly.

NOTE:

The airbag connector must be connected from above! The cables must not rest on the vibration damper!

-- Connect the harness connector in the area of the "6 o'clock steering wheel spoke".

-- Press the airbag unit into the steering wheel.

-- Check whether the airbag unit is engaged on the left and right side of the steering wheel.

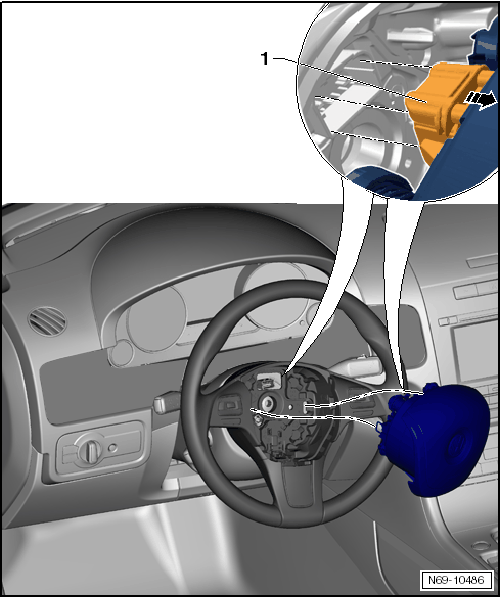

Fig 1: Remove/Install Steering Wheel Airbag (1 Of 2)
GWWN69-10486Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch the ignition on.

WARNING:

Make sure that no persons are in the vehicle.

-- Connect the battery. Refer to BATTERY .
