Airbag Control Module -J234-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the trim from the shift mechanism. Refer to GEARSHIFT MECHANISM TRIM, REMOVING AND INSTALLING .

-- Switch the ignition on.

-- Disconnect the battery. Refer to BATTERY .

-- Release the auxiliary locking mechanism -4- in the direction of the -arrow- and press the button -3-.

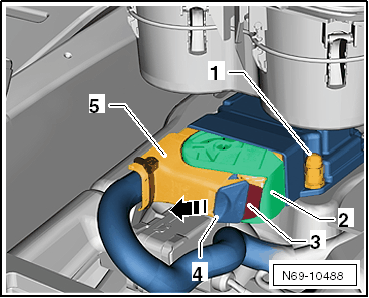

Fig 1: Identifying Auxiliary Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the lever -2- and remove the connector -5-.

-- Remove the cap nut -1- (quantity: 3) (9 Nm ).

-- Remove the control module from the vehicle.
