Overview - Fuel Tank With Attachments: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

During all repair procedures on the fuel tank, be aware of the following:

  • Route lines of all types (for example, for fuel, hydraulic, Evaporative Emission (EVAP) system, coolant, refrigerant, brake fluid, vacuum) and electrical wiring so that the original routing is followed.
  • Make sure that the Ground (GND) wire between the fuel filler tube and body is securely fastened, to prevent electrostatic charging.
  • Ensure sufficient clearance to all moving or hot components.

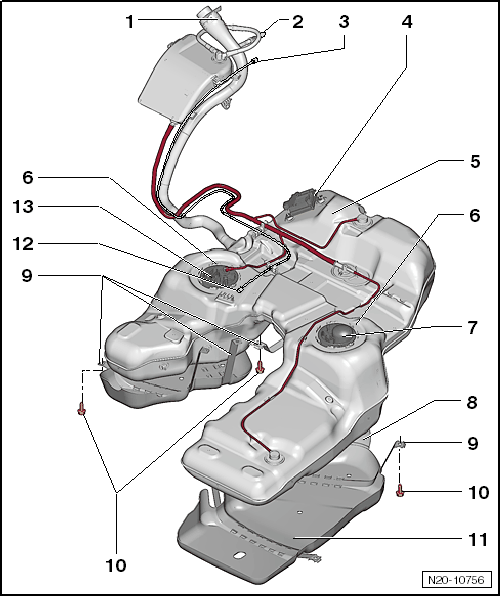

GWWN20-10756Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Fuel Filler Tube
    • Tighten to the body to 10 Nm
    • With a connection for the GND wire to the body
    • Make sure it is secure
  2. Breather Line
    • From the fuel tank
    • To the Evaporative Emission (EVAP) canister
  3. Breather Line
    • From the EVAP Canister Purge Regulator Valve 1 -N80-
    • To the EVAP canister
  4. Fuel Pump Control Module -J538-
  5. Fuel Tank
  6. Locking Ring
    • 145 Nm
    • Remove and install with the :T10202
    • Make sure it is secure
  7. Fuel Filter
  8. Heat Shield
  9. Mounting Strap
    • Note the installation position
    • Make sure it is secure
  10. Bolt
    • 33 Nm
  11. Protective Cover
    • For the bottom of the fuel tank
  12. Line Coupling
    • To loosen, squeeze the button the line coupling
  13. Fuel Delivery Unit
