Overview - Fuel Delivery Unit, Fuel Level Sensor And Suction Jet Pumps

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

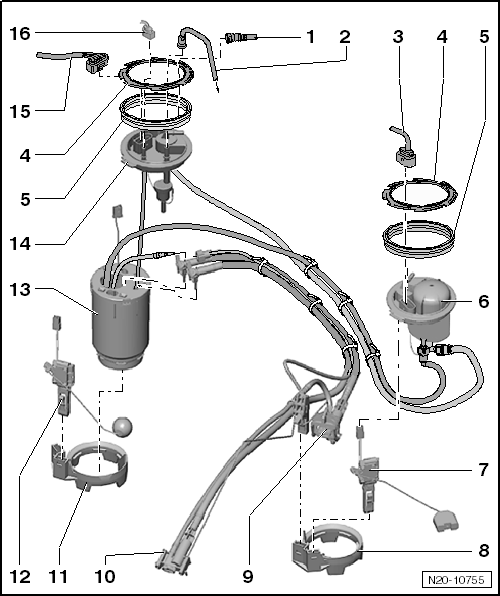

Fig 1: Exploded View Of Fuel Delivery Unit, Fuel Level Sensor And Suction Jet Pumps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Breather Line
- Blue
- Make sure it is secure
Fuel Supply Line
- Black
- Make sure it is secure
Connector
- For Fuel Level Sensor 2 -G169-
Locking Ring
- 145 Nm
- Remove and install with the :T10202
- Make sure it is secure
Seal
- Always replace
Fuel Filter
- Left side
- Fuel Filter, Replacing. Refer to FUEL FILTER, REMOVING AND INSTALLING
Fuel Level Sensor 2 -G169-
- Left side
- Flat, rectangular floater
- Clipped in the retaining ring on the bottom of the reservoir -item 8- OVERVIEW - FUEL DELIVERY UNIT, FUEL LEVEL SENSOR AND SUCTION JET PUMPS List Item:Retaining Ring
- Removing and installing. Refer to Fuel Level Sensor 2 -G169- AND SUCTION JET PUMPS, REMOVING AND INSTALLING .
Retaining Ring
- Welded to the fuel tank
- For the Fuel Level Sensor 2 - G169- and the suction jet pump retainers
Suction Jet Pump
- Clipped to the retaining ring -item 8- OVERVIEW - FUEL DELIVERY UNIT, FUEL LEVEL SENSOR AND SUCTION JET PUMPS List Item:Retaining Ring.
- Removing and installing. Refer to Fuel Level Sensor 2 -G169- AND SUCTION JET PUMPS, REMOVING AND INSTALLING .
Suction Jet Pump
- Removing and installing. Refer to Fuel Level Sensor 2 -G169- AND SUCTION JET PUMPS, REMOVING AND INSTALLING .
Retaining Ring
- Welded to the fuel tank
- For Fuel Level Sensor -G-
Fuel Level Sensor -G-
- Right side
- Round, spherical floater
- Clipped in the retaining ring on the bottom of the reservoir -item 11- OVERVIEW - FUEL DELIVERY UNIT, FUEL LEVEL SENSOR AND SUCTION JET PUMPS List Item:Retaining Ring
- Removing and installing. Refer to FUEL DELIVERY UNIT AND Fuel Level Sensor -G-, REMOVING AND INSTALLING .
Fuel Delivery Unit
- Removing and installing. Refer to FUEL DELIVERY UNIT AND Fuel Level Sensor -G-, REMOVING AND INSTALLING .
Flange
- Always replace the flange seal
- Right side
- With a pressure relief valve
- For the fuel delivery unit
- For Fuel Level Sensor -G-
- Individual component. Refer to Individual Components of Flange, Right Side
- Pay attention to the installed position on the fuel tankLocation of Flange on Fuel Reservoir
Connector
- For the fuel pump
Connector
- For Fuel Level Sensor -G-
