FUEL DELIVERY UNIT AND Fuel Level Sensor -G-, REMOVING AND INSTALLING: Installing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal while noting the following:

-- Replace the seals for the sensor flanges.

-- Install the flanges in direction of travel -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

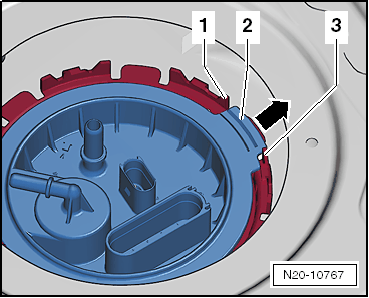

The tab on the flange -2- must be between the tongues -1 and 3- on the fuel tank.

-- Tighten the locking ring to 145 Nm using the :T10202 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Make sure the connectors and the fuel hoses are secure.
