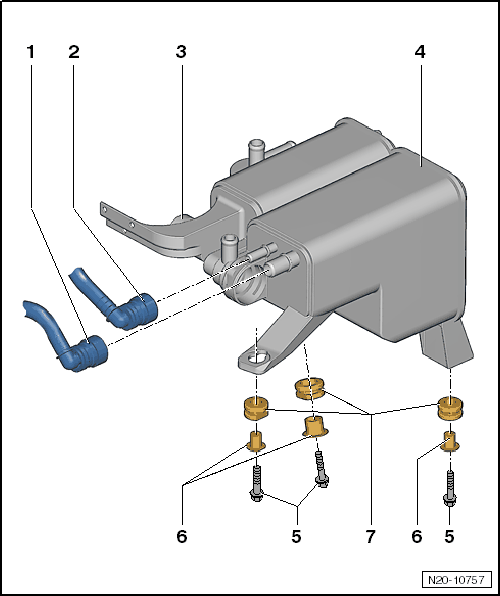

Overview - EVAP System
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Breather Line
- From the fuel tank
- Make sure it is secure
- Breather Line
- To EVAP Canister Purge Regulator Valve 1 -N80-
- Make sure it is secure
- Bleed Connection
- Evaporative Emission (EVAP) Canister
- Installed location: inside the wheel housing in the rear and on the right side
- Bolt
- 9 Nm
- Spacer Sleeve
- Rubber Bushing
