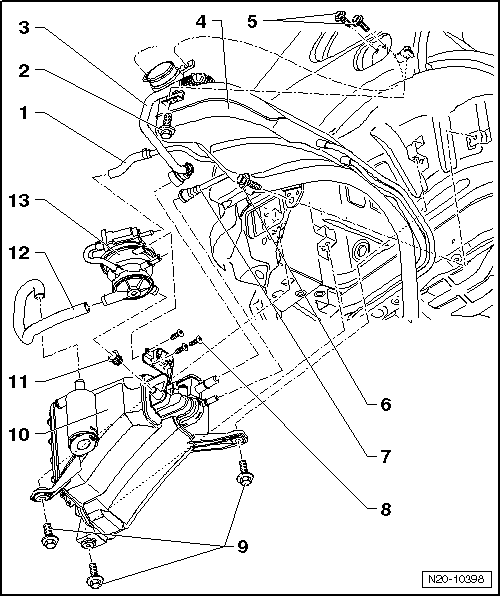

Overview - EVAP System
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Vacuum Line
- For the vacuum supply to the Leak Detection Pump - V144-
- To vacuum connection on the intake manifold
- Make sure it is secure
- Bolt
- 9 Nm
- Breather Line
- From the fuel tank
- Make sure it is secure
- Fuel Filler Tube
- With reservoir
- Bolt
- 5 Nm
- Bolt
- 9 Nm
- Breather Line
- To EVAP Canister Purge Regulator Valve 1 -N80-
- Make sure it is secure
- Bolt
- 5 Nm
- Bolt
- 9 Nm
- Evaporative Emission (EVAP) Canister
- Installed location: inside the wheel housing in the rear and on the right side
- Rubber Bushing
- Note the installation position
- Replace if damaged.
- Connecting Hose
- Between the air filter and Leak Detection Pump - V144-
- Make sure it is secure
- Leak Detection Pump -V144-
- Fuel system, checking for leaks. Refer to FUEL SYSTEM, CHECKING FOR LEAKS
- Black 3-pin connector
