Step 4 (No Shavings In Fuel Delivery Unit And Fuel Tank)

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Fill the fuel tank with five liters of diesel fuel.

-- Drain the fuel tank again completely as described above.

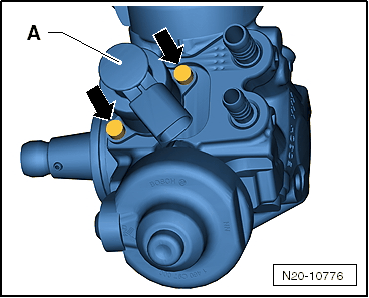

-- Remove the bolts -arrows- and remove the metering unit -A- from the high pressure pump.

Fig 1: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the metering unit and high pressure pump for shavings.

Are there any shavings?

Yes. Refer to STEP 5 (SHAVINGS IN HIGH PRESSURE PUMP) .

No. Refer to STEP 6 (NO SHAVINGS IN HIGH PRESSURE PUMP) .
