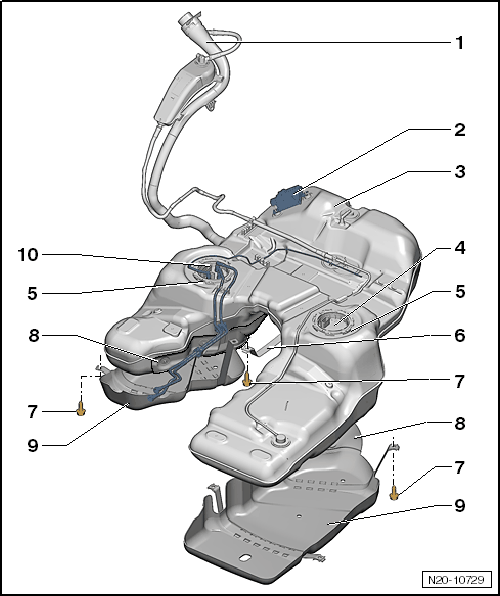

Overview - Fuel Tank: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel Filler Neck
- Fuel Pump Control Module -J538-
- To replace, remove the fuel tank. Refer to FUEL TANK, REMOVING AND INSTALLING .
- Fuel Tank
- Support with the Engine and Gearbox Jack:VAS6931 when removing.
- Fuel Tank, Draining. Refer to FUEL TANK, DRAINING .
- Removing and Installing. Refer to FUEL TANK, REMOVING AND INSTALLING .
- Flange
- Left side
- for Fuel Level Sensor 2 -G169-
- Pay attention to the fuel tank installation position. Refer to Figure.
- Locking Ring
- 145 Nm
- Remove and install using the Wrench - Fuel Sending Unit:T10202
- Check for secure fit
- Mounting Strap
- Note the installation position
- Check for secure fit
- Bolt
- 33 Nm
- Heat Shield
- Protective Cover
- For the fuel tank
- Flange
- Right side
- With a pressure relief valve
- For the fuel delivery unit and the Fuel Gauge Sensor -G-
- Pay attention to the fuel tank installation position. Refer to Figure.
