Vehicle with a Heated Steering Wheel

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

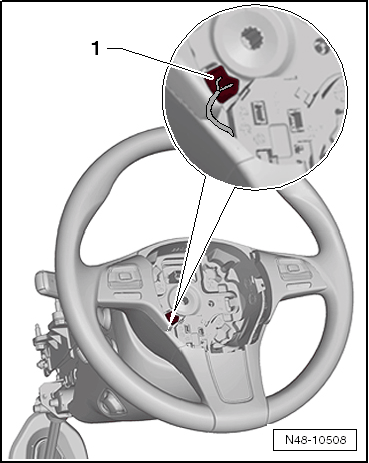

Fig 1: Identifying Connector -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector -1-.

Continuation for All Vehicles

-- Remove the bolt -1-.

-- Mark the position of the steering wheel/steering column.

-- Remove the steering wheel -2- from the steering column.

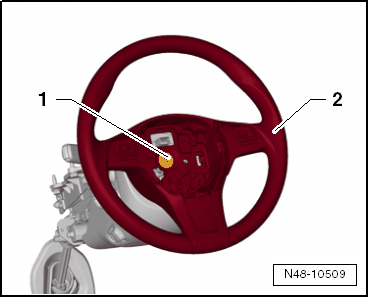

Fig 2: Identifying Bolt -1- And Steering Wheel -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
