Special Tools

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

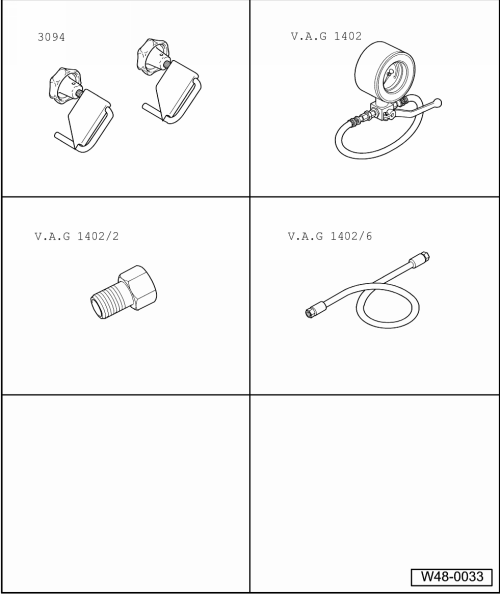

Fig 1: Identifying Special Tools -- Power Steering Pump Delivery Pressure, 8-Cylinder Injection Engine

GWWW48-0033

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Hose Clamps - Up To 25 mm:3094
Power Steering Test Unit:VAG1402
Power Steering Test Unit - Adapter:VAG1402/2
Power Steering Test Unit - Adapter Hose:VAG1402/6
Power Steering Test Unit - Adapter Set:VAG1402/17

Fig 2: Identifying Special Tools -- Tie Rod, Removal And Installation

GWWW48-10000

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Torque Wrench 1332 40-200 Nm :VAG1332
Torque Wrench Insert - Open Jaw:VAG1923
Puller - Ball Joint:T10187
Locking Pliers:VAS6199

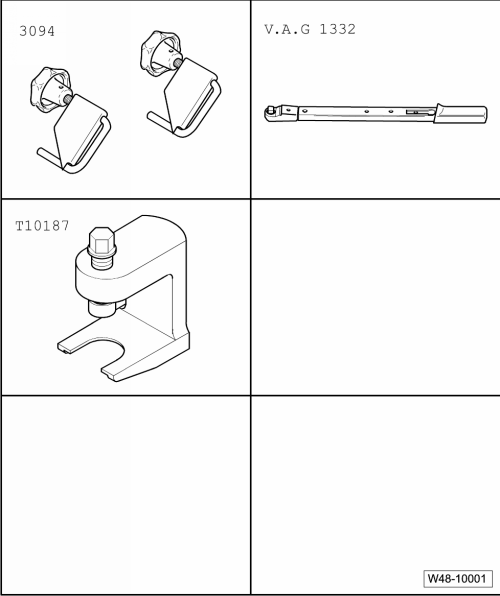

Fig 3: Identifying Special Tools -- Power Steering Gear, Removing And Installing

GWWW48-10001

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Hose Clamps - Up To 25mm:3094
Torque Wrench 1332 40-200 Nm :VAG1332
Puller - Ball Joint:T10187

Fig 4: Identifying Special Tools -- Hose Clamps And Wrenches

GWWW48-10010

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Hose Clamps - Up To 25 mm:3094
Torque Wrench 1331 5-50 Nm :VAG1331
Wrench - Pin Type:3212
TORX® Socket - T60:T40087

Special Tools And Workshop Equipment Required

Hose Clip Pliers:VAG1275A

Fig 5: Hose Clamp Pliers VAG 1275
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Power Steering Test Unit - Adapter Set 19:VAG1402/19

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1410:VAG1410

Fig 6: Identifying Torque Wrench VAG 1410
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Shop Crane - Drip Tray:VAS6208

Fig 7: Drip Tray For Shop Crane VAS 6208
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
