Overview - Power Steering

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

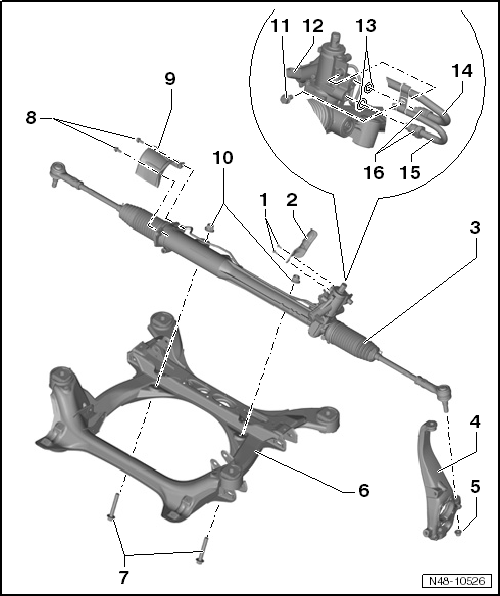

Fig 1: Identifying Power Steering Assembly Overview
GWWN48-10526Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Hex Bolt
    • 9 Nm
  2. Heat Shield
  3. Power Steering Gear
  4. Wheel Bearing Housing
    • Tapered holes must be free of oil and grease
    • If necessary, clean with a dry rag, do not use cleaning solvent
    • There are different versions.
    • For the allocation. Refer to the Parts Information.
  5. Self-Locking Nut
    • 90 Nm
    • Always replace if removed
  6. Subframe
  7. Hex Bolt
    • Always replace if removed
  8. Hex Bolt
    • 9 Nm
  9. Heat Shield
  10. Nut
    • 90 Nm  + 90°
    • Always replace if removed
  11. Hex Bolt
    • 9 Nm
  12. Servotronic Solenoid Valve -N119-
  13. Seal
    • Replace
  14. Pressure Line
  15. Return Line
  16. Bolt
    • 32 Nm
