Power Steering Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

For all repair work, especially in the engine compartment due to the tight working conditions, observe the following:

  • Route lines of all types (for example for fuel, hydraulic, EVAP canister system, coolant and refrigerant, brake fluid, vacuum) correctly. The original path must be followed.
  • Ensure sufficient clearance to all moving or hot components.

Vehicles With An Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

Continuation For All Vehicles

-- Clamp off the suction hose using Hose Clamps - Up To 25mm:3094  -1-.

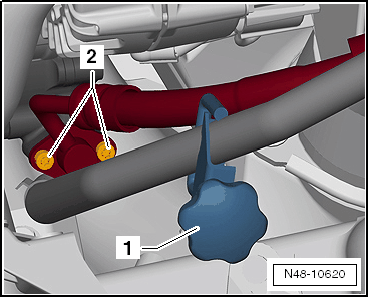

Fig 1: Identifying Hose Clamp 3094 -1- And Screws -2-
GWWN48-10620Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2- and remove the pressure line from the power steering pump.

-- Remove the front noise insulation. Refer to NOISE INSULATION .

-- Open spring clamp and pull suction hose -1- off the power steering pump.

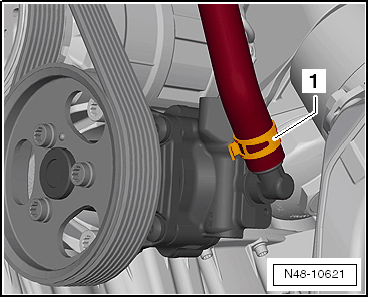

Fig 2: Identifying Spring Clamp -1- On Suction Hose
GWWN48-10621Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the bolts -arrows-.

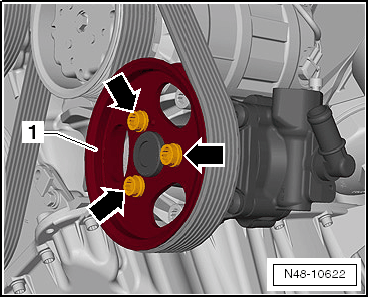

Fig 3: Identifying Bolts -Arrows- And Ribbed Belt Pulley
GWWN48-10622Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING [For engine(s) CGFA] .

-- Remove the bolts -arrows- and the belt pulley -1-.

-- Remove bolts -arrows- and remove power steering pump -1- from retainer.

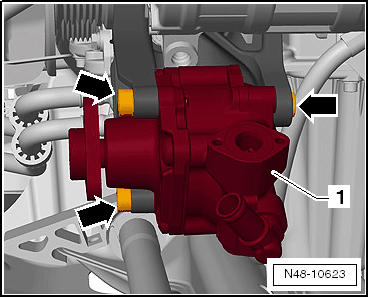

Fig 4: Identifying Bolts -Arrows- And Power Steering Pump -1-
GWWN48-10623Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
