Tie Rod End, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with an Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

Continuation For All Vehicles

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

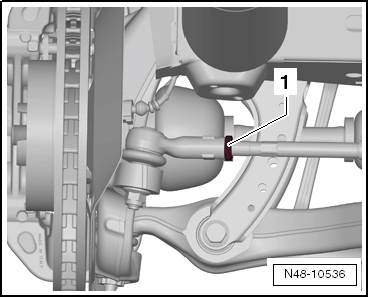

-- Loosen nut -1-.

Fig 1: Front Axle Toe, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mark the position of the tie rod end on the tie rod.

-- Loosen nut of track rod ball joint, but do not unscrew yet.

CAUTION:

To protect thread, screw nut on pin a few turns.

-- Remove the tie rod from the wheel bearing housing and remove the nut.

Puller - Ball Joint:T10187

-- Remove the tie rod end from the tie rod.

Fig 2: Loosen Nut Of Track Rod Ball Joint

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
