Tie Rod End, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install In Reverse Order Of Removal. Note The Following:

-- Make sure the correct tie rod end is installed on each side.

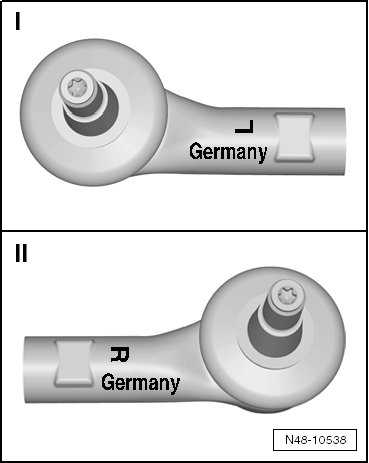

Fig 1: Identifying Left Tie Rod End -I- And Right Tie Rod End -II-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

I - Left Tie Rod End

II - Right Tie Rod End

-- Turn the tie rod end to marking made earlier on the tie rod and secure it with a locking nut.

-- Install the tie rod end into the wheel bearing housing.

-- Install the tie rod end with a new nut.

-- Install the wheel and tighten. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .

-- After installation, a vehicle alignment must be performed. Refer to WHEEL ALIGNMENT .
