Power Steering Gear, Removing And Installing, RHD: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles With An Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

Continuation for All Vehicles

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheels.

-- Clamp off pressure and return line using Hose Clamps - Up To 25mm:3094  .

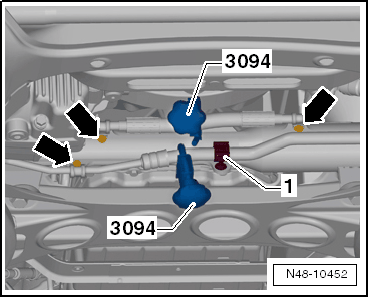

Fig 1: Clamp Off Pressure And Return Line Using Hose Clamps 3094.
GWWN48-10452Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screws -arrows- from the steering gear.

-- Open the bracket -1- and remove the return line.

-- Loosen nut of track rod ball joint, but do not unscrew yet.

Fig 2: Loosen Nut Of Track Rod Ball Joint
GWWN48-10534Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
CAUTION:

To protect thread, screw nut on pin a few turns.

-- Remove the tie rod end from the wheel bearing housing and remove the nut.

  1. Puller - Ball Joint:T10187

-- Remove the screws -1- from the steering gear and remove the heat shield.

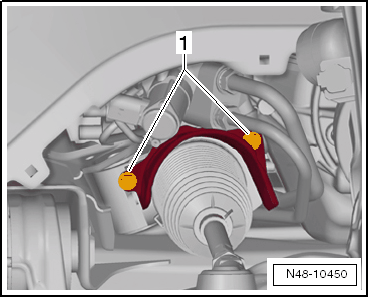

Fig 3: Identifying Screws -1- And Steering Gear
GWWN48-10450Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pressure and return line -1- from the steering gear downward.

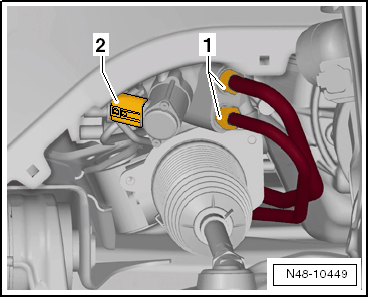

Fig 4: Identifying Pressure, Return Line -1- And Connector
GWWN48-10449Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2- on the Servotronic Solenoid Valve -N119-.

-- Remove the screws -arrows- and remove the heat shield -1-.

Fig 5: Identifying Screws -Arrows- And Heat Shield -1-
GWWN48-10448Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screw on the steering gear for the universal joint and then remove the universal joint.

-- Remove the steering gear screws -arrows- from the subframe.

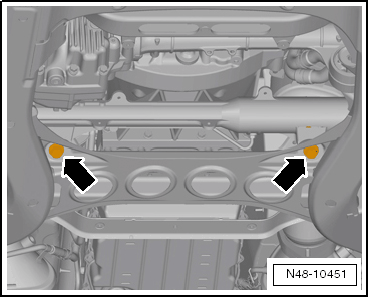

Fig 6: Steering Gear Screws
GWWN48-10451Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts and nuts -1- through -3- the connect the front final drive -A- to the subframe -B-.

Fig 7: Identifying Bolts With Nuts For Front Final Drive On Subframe, Removal/Installation
GWWN39-1226Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the insert from a trolley jack in the Engine and Gearbox Jack:VAS6931  .

-- Lift the front final drive with the Engine and Gearbox Jack: VAS6931  .

-- Remove the rear bolt for the subframe -arrow- on both sides of the vehicle.

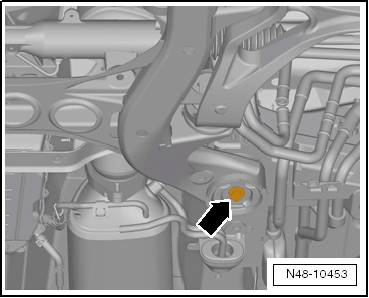

Fig 8: Identifying Removal Of Rear Bolt For The Subframe -Arrow- From Both Sides Of Vehicle
GWWN48-10453Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the subframe as far as possible.

-- Remove the steering gear on the right side of the vehicle.
