Steering Column, Removing And Installing, RHD: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The steering column is delivered only as a complete replacement part. Service is not possible.

If the steering column is replaced, the Electronic Steering Column Lock Control Module -J764- is already installed on the new steering column and does not need to be modified.

If a power adjustable steering column is replaced, the Power Adjustable Steering Column Control Module -J866- is already installed on the new steering column and does not need to be modified.

Vehicles with an Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

Continuation For All Vehicles

-- Straighten the wheels.

-- Switch the ignition off and remove the ignition key.

-- Remove the right front wheel.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Remove the right front wheel liner. Refer to WHEEL HOUSING LINER .

-- Remove the airbag steering wheel. Refer to AIRBAG STEERING WHEEL, REMOVING AND INSTALLING .

WARNING:

Before performing work on the electrical system and removing the steering wheel, the following conditions must be met:

  • Remove the battery ground cable. Refer to BATTERY .
  • The wheels must be straight.

The airbag system may fail at a later time if these warnings are not followed!

-- Remove the steering column trim panel. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

-- Remove the steering column switch module. Refer to STEERING COLUMN SWITCH .

-- Remove the footwell cover on the driver side. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

-- Remove the right and left instrument panel trim on the driver side. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM and STORAGE COMPARTMENTS, COVERS AND TRIM .

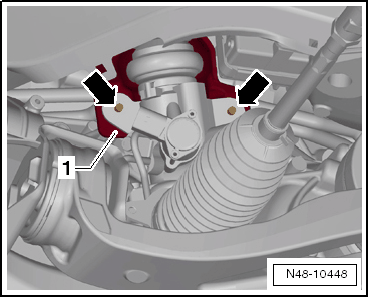

-- If equipped, remove screws -arrows-.

Fig 1: Identifying Screws -Arrows- And Heat Shield -1-
GWWN48-10448Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the heat shield -1- from the steering gear.

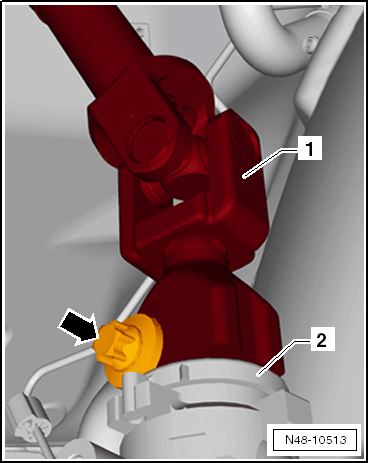

-- Remove the bolt -arrow- of the universal joint -1-.

Fig 2: Identifying Bolt -Arrow- Of Universal Joint -1-
GWWN48-10513Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the universal joint -1- from the power steering gear -2-.

WARNING:
  • Danger of getting burned by the exhaust system depending on the engine installed.

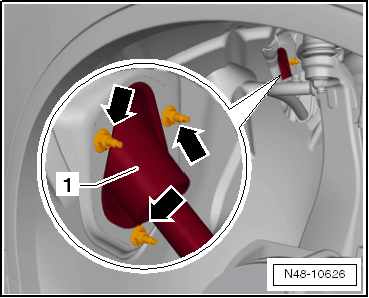

-- Unscrew the nuts -arrows- at the protective boot -1-.

GWWN48-10626Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

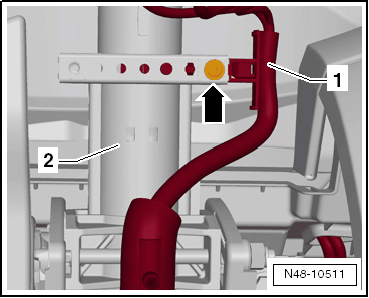

-- Detach the cable bracket -arrow- from the wiring harness -1- at the steering column -2-.

Fig 3: Identifying Cable Bracket -Arrow- From Wiring Harness -1- At Steering Column -2-
GWWN48-10511Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the wiring harness to the side.

Vehicles with a Power Adjustable Steering Column

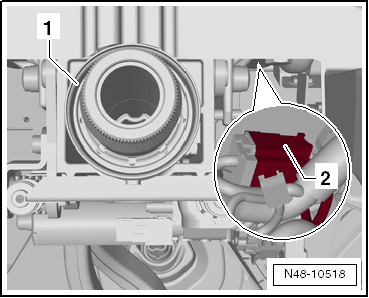

Fig 4: Identifying Harness Connector -2- To Power Adjustable Steering Column -1-
GWWN48-10518Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the harness connector -2- of the wiring harness for the power adjustable steering column -1- behind the instrument cluster.

Continuation For Both Vehicles

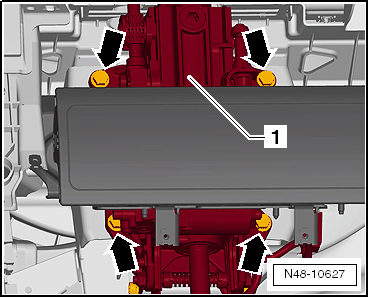

-- Remove the bolts -arrows- from the steering column -1-.

GWWN48-10627Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

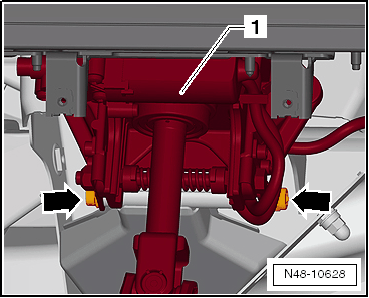

-- Unscrew the threaded connection -arrows- between the steering column and the frequency damper.

GWWN48-10628Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Support the steering column -1- from underneath with one hand and remove the bolt.

Vehicles With A Power Adjustable Steering Column

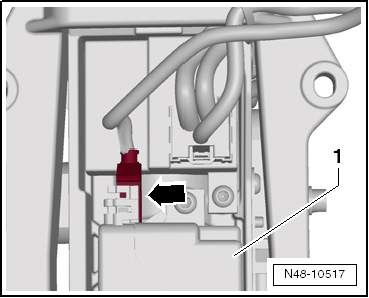

-- Disconnect the connector -arrow- from the Electronic Steering Column Lock Control Module -J764- -1-.

Fig 5: Identifying Connector -Arrow- To Electronic Steering Column Lock Control Module -1-
GWWN48-10517Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation For Both Vehicles

-- Carefully lower the steering column.

-- Fold back the floor covering in the protective boot area in the driver footwell.

-- Remove the steering column and protective boot from the vehicle.
