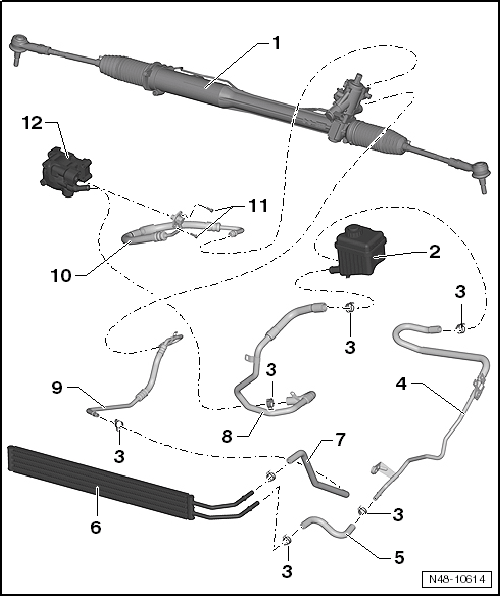

Overview - Hydraulic Lines, 8-Cylinder Diesel Engine
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Power Steering Gear
- Reservoir
- Clamp
- Return Line
- Return Hose
- Oil Cooler
- Removing and installing. Refer to OIL COOLER, REMOVING AND INSTALLING .
- Return Hose
- Suction Hose
- Return Line
- Pressure Line
- Bolt
- 9 Nm
- Power Steering Pump
- Removing and installing. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING, 8-CYLINDER GASOLINE AND DIESEL ENGINE .
