Oil Cooler, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

When doing any repair work, especially in the engine compartment, pay attention to the following due to clearance issues:

  • Route lines of all types (for example for fuel, hydraulic, EVAP canister system, coolant and refrigerant, brake fluid, vacuum) and electrical wiring so that the original path is followed.
  • To prevent damage to the lines, make sure there is sufficient clearance to all moving or hot components.

-- Remove the front noise insulation. Refer to NOISE INSULATION .

-- Remove the front bumper. Refer to FRONT BUMPER COVER .

-- Remove the impact member. Refer to FRONT BUMPER COVER .

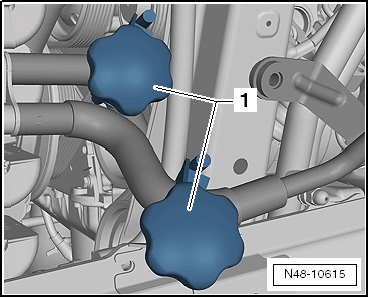

-- Clamp off the suction hose and return hose using the Hose Clamps - Up To 25mm:3094  -1-.

Fig 1: Identifying Hose Clamp Knobs -1-
GWWN48-10615Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

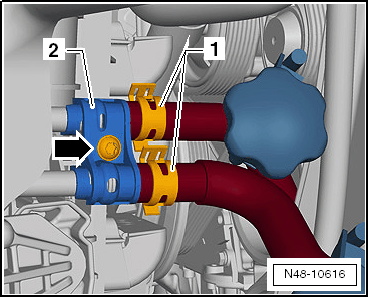

-- Open the hose clamps -1- and move them to the side.

Fig 2: Identifying Tabs -Arrows- On Bracket -2-, Bolt -Arrow- And Hose Clamps -1-
GWWN48-10616Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the intake hose and return hose from the oil cooler.

-- Remove the bolt -arrow- for the oil cooler bracket -2- and remove the bracket.

-- Remove the upper cooler module bolts -arrow- on both sides.

Fig 3: Identifying Bolt
GWWN19-10547Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower left cooler module bolts -A-.

Fig 4: Folding Up Air Guide On Left And Right -Arrow- To Remove Screws -A- (25 Nm)
GWWN19-10545Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

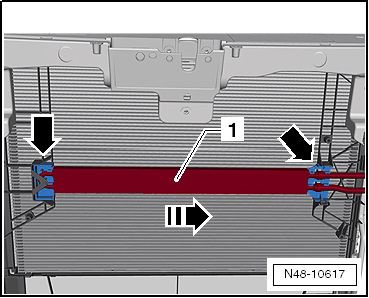

-- Slide the oil cooler -1- to the left in the direction of -arrow- out of the retainers -arrows-.

Fig 5: Sliding Oil Cooler -1- To Left -In Direction Of Arrow- Out Of Retainers -Arrows-
GWWN48-10617Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

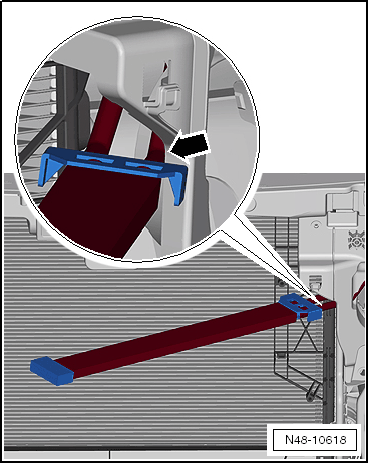

-- Press the cooler module toward the rear while turning the oil cooler so that it can be removed forward through the guide -arrow-.

Fig 6: Identifying Oil Cooler Module And Guide -Arrow-
GWWN48-10618Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
