Motor Pump Assembly, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the battery ground cable with the ignition off. Refer to BATTERY .

Vehicles With An Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

Continuation For All Vehicles

-- Loosen the wheel bolt.

-- Raise the vehicle.

-- Remove the wheel.

-- Remove the left front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Clamp off the suction hose -3- using the Hose Clamps - Up To 25mm:3094 -1-.

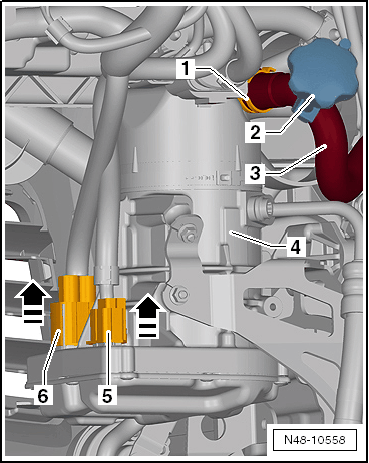

Fig 1: Identifying Clamp -1-, Intake Hose -3-, Engine Pump Assembly -4- And Connectors -5 To 6-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the clamp -1- and disconnect the intake hose -3- from the connector of the engine pump assembly -4-.

-- Disconnect connectors -5 and 6- from the engine pump assembly -4-.

-- Disconnect the pressure line -1- at the connection point -2-.

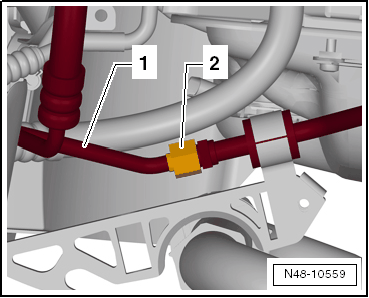

Fig 2: Identifying Pressure Line -1- At Connection Point -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen but do not unscrew the securing nuts -1- at the engine pump assembly -2-.

-- Remove the engine pump assembly -2- from the bracket.

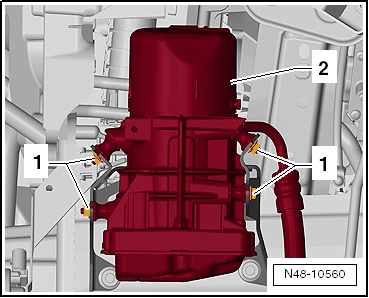

Fig 3: Identifying Securing Nuts -1- For Engine Pump Assembly -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
