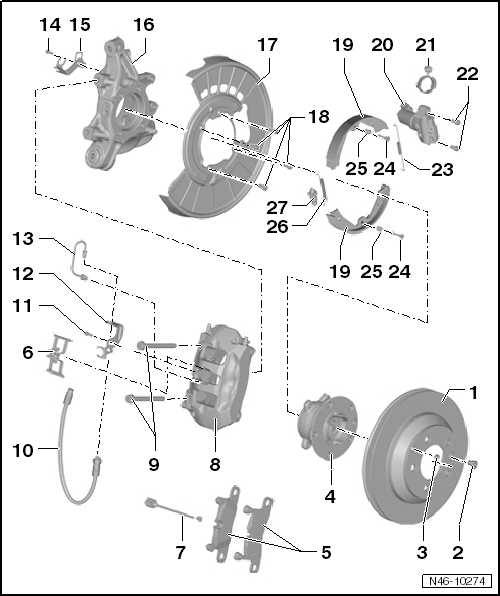

Overview - Rear Brakes, 17" Brake Caliper
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
After replacing brake pads, depress brake pedal several times firmly to properly seat brake pads in their normal operating position.
Use the Brake Charger/Bleeder Unit :VAS5234 to extract brake fluid from brake fluid reservoir.
Install the Brake Pedal Actuator:VAG1869/2 to relieve pressure before removing a brake caliper or disconnecting a brake hose.
- Brake Rotor/Brake Drum
- Internally vented brake rotor: 330 mm diameter
- Brake rotor thickness: 28 mm
- Wear limit: 26 mm
- Brake drum: 210 mm diameter
- Wear limit: 211 mm
- Always replace on both axles (Rotors replaced in pairs per axle)
- Remove the brake caliper before removing, do not remove the brake line.
- Move the parking brake motors into the installation position beforehand
- After replacing, perform the basic setting for the electro-mechanical parking brake.
- Fitting Bolt
- 15 Nm
- Brake rotor to wheel hub
- Sealing Plug
- 15 Nm
- For the adjusting nut for the electro-mechanical parking brake
- Wheel Hub with Wheel Bearing
- Brake Pads
- Thickness: 10 mm without backing plate
- Wear limit: 2 mm without backing plate
- With wear indicator
- When wear limit is reached (limit: approximately 4 mm) the warning lamp in instrument cluster will come on.
- Check the thickness. Refer to appropriate service information.
- Always replace on both axles.
- Removing and installing. Refer to BRAKE PADS, REMOVING AND INSTALLING .
- Spring
- For brake pads
- Brake Pad Wear Display Wire
- Brake Caliper
- Removing and installing. Refer to BRAKE CALIPER, REMOVING AND INSTALLING .
- Servicing. Refer to OVERVIEW - BRAKE CALIPER, BREMBO 17" .
- Internal Multi-Point Bolt
- 30 Nm + 75° turn
- Always replace if removed
- Threads in the wheel bearing housing, servicing. Refer to BRAKE CALIPER THREADED CONNECTION THREAD, SERVICING .
- Brake Hose
- Do not disconnect the brake hose when replacing brake rotor
- Make sure that lugs are properly seated in grooves in bracket.
- Bolt,
- 8 Nm
- Bracket
- Brake pad wear display wire
- Brake Line
- 14 Nm
- To replace the brake pad or brake rotor, do not remove the brake line
- Bolt
- 10 Nm
- Bracket
- Wheel Bearing Housing
- Threads in the wheel bearing housing, servicing. Refer to BRAKE CALIPER THREADED CONNECTION THREAD, SERVICING .
- Brake Carrier Plate
- The wheel bearing unit must be removed to replace. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING
- Bolt
- 8 Nm
- Brake Shoes
- Without wear indicator
- Minimum brake pad thickness: 1 mm
- Removing and installing. Refer to BRAKE SHOES, REMOVING AND INSTALLING .

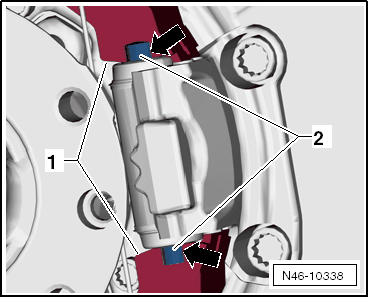

- Coat the brake shoe ridge on the sliding and side surfaces near the parking brake motor mount with hot bolt paste G 052 112 A3 Figure
- After replacing, perform the basic setting for the electro-mechanical parking brake.
- Parking Brake Motor
- Removing and installing. Refer to PARKING BRAKE MOTOR, REMOVING AND INSTALLING .
- Coat the mount for the brake shoes on the sliding and side surfaces with hot bolt paste G 052 112 A3 Figure
- After replacing, perform the basic setting for the electro-mechanical parking brake.
- Clip
- Bracket for the parking brake motor wire
- Fitting Bolt,
- 65 Nm
- Parking brake motor to wheel bearing housing
- Return Spring
- Parking Brake Motor
- Spring Pin
- Pressure Spring
- Tension Spring
- Adjusting Nut
- Adjusting Nut
- Air gap, adjusting. Refer to AIR GAP, ADJUSTING .
