Right Adjusting Nut
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

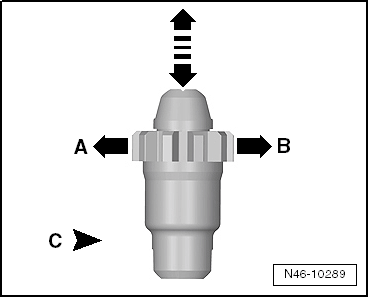

- The air gap becomes smaller in the direction of the -arrow A- (= tighter).
- The air gap becomes larger in the direction of the -arrow B- (= looser).
- The direction of the -arrow C- is the direction of travel.
-- After adjusting the air gap, press the Finish button to update the actual values.
-- Afterwards, perform the basic setting for the electro-mechanical parking brake.
-- To do so, select the electro-mechanical parking brake and then the "Electro-mechanical parking brake basic setting" function.
-- Tighten the sealing plug -arrow- for the parking brake adjusting nut.
-- Install the rear wheels.
-- Perform a basic setting.
