Left Adjusting Nut
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

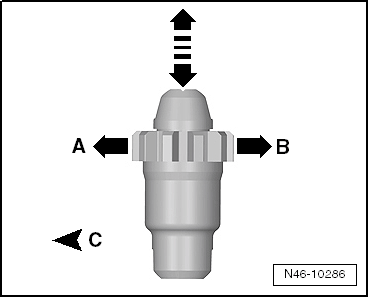

- The air gap becomes smaller in the direction of the -arrow A- (= tighter).
- The air gap becomes larger in the direction of the -arrow B- (= looser).
- The direction of the -arrow C- is the direction of travel.
NOTE:
The adjusting nut on the right side of the vehicle is a mirror image.
