Overview - Front Brakes, BREMBO 18"
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
After replacing brake pads, depress brake pedal firmly several times with vehicle stationary so that the brake pads are properly seated in their normal operating position.
Use the Brake Charger/Bleeder Unit:VAS5234 or the Extractor:VAG1869/4 to extract brake fluid from brake fluid reservoir.
Install the Brake Pedal Actuator :VAG1869/2 to relieve pressure before removing a brake caliper or disconnecting a brake hose.

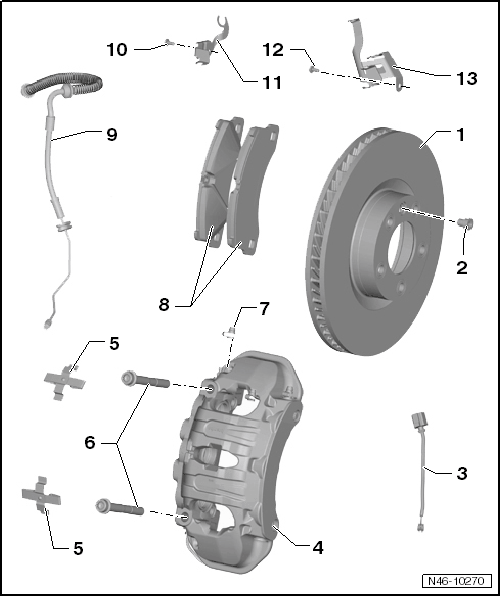

- Brake Rotor
- Internally vented brake rotor: 368 mm diameter
- Brake rotor thickness: 36 mm
- Wear limit: 34 mm
- Always replace on both axles (Rotors replaced in pairs per axle)
- Left and right sides are different
- Remove the brake caliper before removing, remove the brake hose bracket and insert the Brake Caliper Assembly Pins:T10439 ; do not disconnect the brake hose.
- Fitting Bolt
- 15 Nm
- Brake rotor to wheel hub
- Brake Pad Wear Display Wire
- Brake Caliper
- To replace the brake pad or brake rotor, do not remove the brake hose
- Removing and installing. Refer to BRAKE CALIPER, REMOVING AND INSTALLING .
- Servicing. Refer to OVERVIEW - BRAKE CALIPER, BREMBO 18" .
- Spring
- For brake pads
- Internal Multi-Point Bolt
- 30 Nm + 90° turn
- Always replace if removed
- Threads in the wheel bearing housing, servicing. Refer to BRAKE CALIPER THREADED CONNECTION THREAD, SERVICING .
- Dust Cap
- Install onto bleeder valve
- As a bracket for the brake pad wear display wire
- Brake Pads
- Thickness: 10 mm without backing plate
- Wear limit: 2 mm without backing plate
- With wear indicator
- When wear limit is reached (limit: approximately 4 mm) the warning lamp in instrument cluster will come on.
- Check the thickness. Refer to appropriate service information.
- Always replace on both axles.
- Removing and installing. Refer to BRAKE PADS, REMOVING AND INSTALLING .
- Brake Hose,
- 14 Nm
- TORX®
Bolt
- 9 Nm
- Upper Bracket
- Bolt to the wheel bearing housing
- Hex Socket Bolt
- 20 Nm
- Lower Bracket
- Bolt to the wheel bearing housing
