Overview - Electromechanical Parking Brake
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

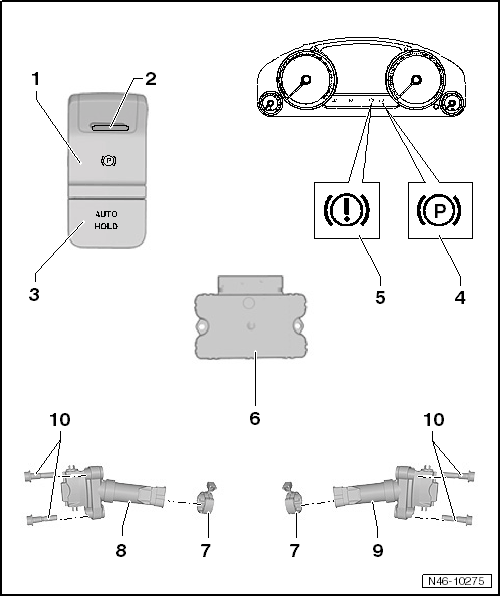

- Electromechanical Parking Brake Button -E538-
- Component location: inside the center console
- Electromechanical Parking Brake Indicator Lamp -K213-
- Component location: inside the Electromechanical Parking Brake Button -E538-
- -AUTO HOLD- Button -E540-
- Component location: inside the center console
- Indicator Lamp with Two Functions --
- Electromechanical Parking Brake Indicator Lamp -K213- is red
- -Auto Hold- Indicator Lamp -K237- is green
Also in the center display of the instrument cluster:
- Electric Parking/Hand Brake Malfunction Indicator Lamp -K214- is yellowNOTE:
An acoustic signal also sounds.
- Component location: inside the instrument cluster
- Brake System Indicator Lamp -K118-
- Component location: inside the instrument cluster
- Electromechanical Parking Brake Control Module -J540-
- Removing and installing. Refer to ELECTROMECHANICAL PARKING BRAKE CONTROL MODULE -J540-, REMOVING AND INSTALLING .
- Clip
- Bracket for the parking brake motor wire
- Left Parking Brake Motor -V282-
- Component location: on the left rear wheel bearing housing
- Removing and installing. Refer to PARKING BRAKE MOTOR, REMOVING AND INSTALLING .
- Right Parking Brake Motor -V283-
- Component location: on the right rear wheel bearing housing
- Removing and installing. Refer to PARKING BRAKE MOTOR, REMOVING AND INSTALLING .
- Fitting Bolt
- 65 Nm
- Parking brake motor to wheel bearing housing
