Brake Pedal Position Sensor -G100-, Adjusting, RHD Vehicles

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the footwell cover. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

Remove the instrument panel side covers. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

Remove the driver side instrument panel left trim. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

Remove the driver side instrument panel right trim. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

-- Remove the Comfort System Central Control Module -J393- with the bracket. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

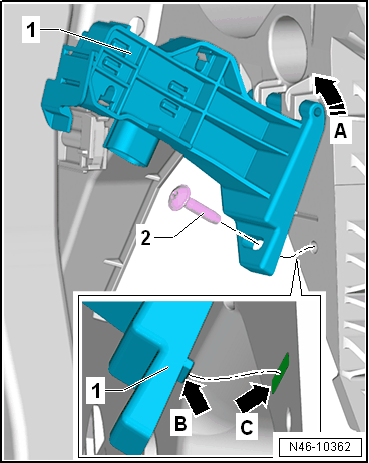

The bracket -1- of the Brake Pedal Position Sensor -G100- has two guides -A- at the top, a guide rib -B- at the bottom and the mounting bracket has a slit -C-, which allows for it to be slid sideways. This prevents any turning.

GWWN46-10362

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

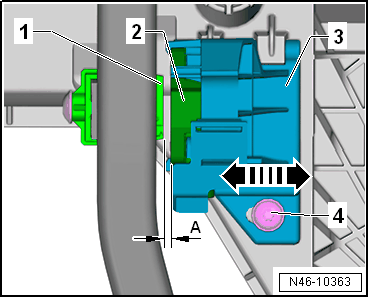

-- Loosen the bolt -4- until the bracket -3- with the Brake Pedal Position Sensor -G100- -2- can be moved back and forth in the -direction of the arrow-.

GWWN46-10363

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Adjust the dimension -A- a minimum of 4 mm to a maximum of 5mm between the Brake Pedal Position Sensor -G100- -2- and the magnet -1-.

-- Re-tighten the bolt -4-.

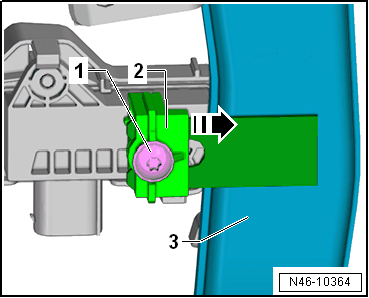

-- Loosen the bolt -1- from the magnet bracket -2- until the magnet bracket -2- can be pushed as close as possible against the brake pedal -3- in the -direction of the arrow A-.

GWWN46-10364

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

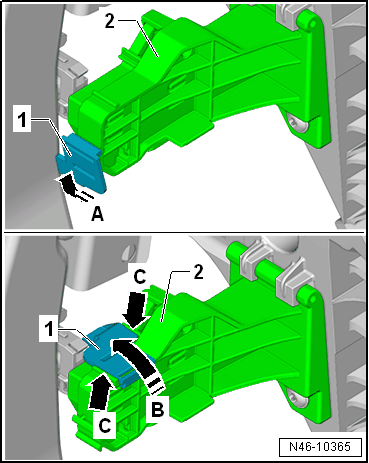

-- Unclip the stop flap -1- from the bracket -2- in the -direction of the arrow A- (upper image half).

-- Then position the stop flap sideways on the top of the bracket and clip it in the -direction of the arrow B- between the stops -C- (lower image half).

GWWN46-10365

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

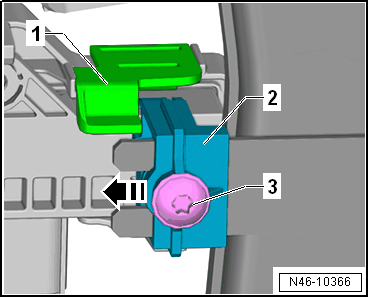

-- Press the magnet bracket -2- lightly in the -direction of the arrow- against the engaged stop flap -1-.

GWWN46-10366

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolt for the magnet bracket -3-.

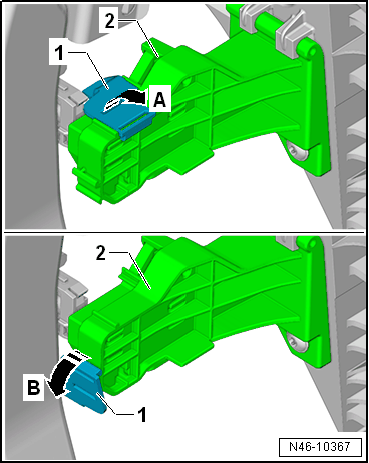

-- Unclip the stop flap -1- from the bracket -2- in the -direction of the arrow A-.

-- Then position the stop flap -1- on the bracket -2- and clip it in again in the -direction of the arrow B-.

GWWN46-10367

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Comfort System Central Control Module -J393- with the bracket. Refer to CONTROL MODULES .

Install the driver side instrument panel right trim. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

Install the driver side instrument panel left trim. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

Install the instrument panel side covers. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

-- Install the footwell cover. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .
