Rear Brake Caliper Piston, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Trim Removal Wedge:3409
Piston Resetting Tool:T10145

The Removal Of The Pistons Is Identical On Different Brake Calipers.

-- Force piston from brake caliper housing, one at a time, using compressed air.

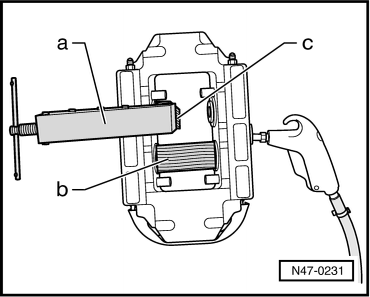

Fig 1: Identifying Resetting Tool, Wood Blocks & Wooden Board

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Only one piston can be pressed out at a time. Secure opposite piston in brake caliper housing using piston resetting tool -a-. Block the other pistons, for example, using wooden blocks -b-. In addition, place a wooden board -c- in front of the piston resetting tool so that the piston will not be damaged when pressed out.

-- Remove the seal with the Trim Removal Wedge:3409 .

Fig 2: Identifying Seal & Trim Removal Wedge 3409

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

When removing, make sure that surface of cylinder is not damaged.
