Preparing The Access Cover For Bleeding The Brakes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

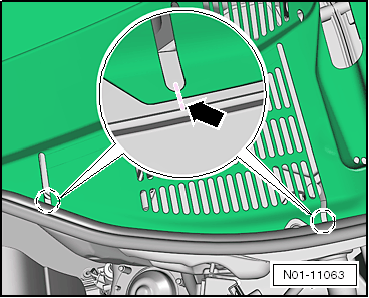

Fig 1: Locating Marks To Cut
GWWN01-11063Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Observe the additional notes. Refer to appropriate service information.

-- Free up the plenum chamber cover so that the marked areas can be reached.

-- Make the cuts at the marked areas -arrow-.
