Brake Lamp Switch -F-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left plenum chamber cover. Refer to PLENUM CHAMBER BULKHEAD .

-- Remove the engine compartment seal near the brake booster.

-- Remove the left bulkhead from the plenum chamber. Refer to PLENUM CHAMBER BULKHEAD .

-- Pull the E-box in the plenum chamber out of the mounting and move it to the side. Refer to E-BOXES .

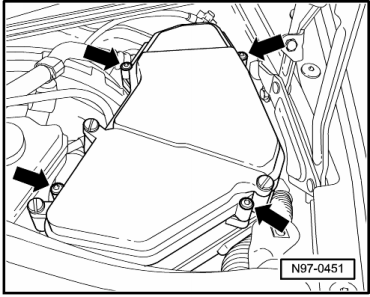

-- Remove the bolts -arrows- and remove the cover for the Connection and Junction Box 2 -SX2-.

Fig 1: Identifying E-Box Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Depending on the vehicle equipment, disconnect all multi-pin connectors.

-- Pull the front wiring harness out of the bulkhead and move it together with the E-box as far as possible to the side.

-- Remove the connector -2- from the Brake Lamp Switch -F- -1-.

Fig 2: Brake Lamp Switch -F- -1-. And Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the TORX^® bolt from the brake master cylinder.

-- Remove the Brake Lamp Switch -F- -1- from the brake master cylinder at the top and then remove it from the clip at the bottom.
