Brake Booster, Removing And Installing, RHD Vehicle: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Open the clamps -arrows- and remove the intake line.

Fig 1: Identifying Clamps -Arrows- And Intake Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the engine compartment seal near the brake booster.

-- Remove the right plenum chamber cover. Refer to PLENUM CHAMBER BULKHEAD .

-- Remove the bolts -arrows- for the coolant expansion tank -1-.

Fig 2: Coolant Reservoir -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the coolant expansion tank -1- in the -direction of the arrow- from the mount.

-- Set the coolant reservoir -1- aside.

NOTE:

Do not remove the coolant hoses.

-- Remove the nuts -arrows- to remove the bracket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the bracket -1- with the lines to the side.

-- Remove the toothed lock washer -arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the coolant hose -1- from the bracket -arrow A-.

-- Remove the right bulkhead from the plenum chamber. Refer to PLENUM CHAMBER BULKHEAD .

-- Place enough lint-free cloths in the plenum chamber in the area of the brake master cylinder.

-- Extract as much brake fluid as possible from the brake fluid reservoir with the Brake Charger/Bleeder Unit:VAS5234 .

-- Unclip the brake line -1- from the bracket -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the brake lines -A- and -B- from the brake master cylinder.

Fig 3: Brake Master Cylinder

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Seal the brake lines and brake master cylinder using the Plugs:1H0 698 311 A from the repair kit.

-- Release and disconnect the connector -2- on the Brake Lamp Switch -F- -1-.

Fig 4: Brake Lamp Switch -F- -1-. And Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the vacuum line -1- from the brake booster.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector from the Brake Fluid Level Warning Switch -F34- -2-.

-- Remove the nut -arrow- from the brake booster.

-- Remove the brake fluid reservoir -1- from the brake master cylinder by removing the bolt -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully remove the brake master cylinder -1- from the brake booster -2-.

-- Remove the footwell cover. Refer to FOOTWELL COVERS, REMOVING AND INSTALLING .

-- Separate the brake booster from the brake pedal. Refer to BRAKE PEDAL, REMOVING FROM BRAKE BOOSTER .

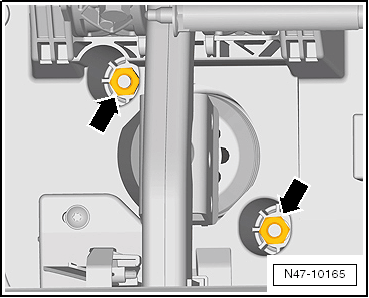

-- Remove the nuts -arrows- from the brake booster.

Fig 5: Identifying Brake Booster Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully remove the brake booster from the plenum chamber.
