Vacuum Line, Removing And Installing With Vacuum Sensor -G608-, RHD Vehicles: Notes

-- Open the clamps -arrows- and remove the intake line.

Fig 1: Identifying Clamps -Arrows- And Intake Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the engine compartment seal near the brake booster.

-- Remove the right plenum chamber cover. Refer to PLENUM CHAMBER BULKHEAD .

-- Remove the bolts -arrows- for the coolant expansion tank -1-.

Fig 2: Coolant Reservoir -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the coolant expansion tank -1- in the direction of -arrow- from the mount.

-- Set the coolant reservoir -1- aside.

-- Remove the nuts -arrows- to remove the bracket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the bracket -1- with the lines to the side.

-- Remove the toothed lock washer -arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the coolant hose -1- from the bracket -arrow A-.

-- Remove the right bulkhead from the plenum chamber. Refer to PLENUM CHAMBER BULKHEAD .

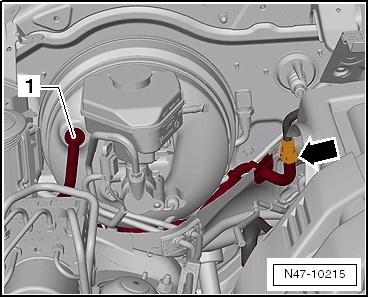

-- Remove the vacuum line at the separating point -arrow- by pressing the release buttons.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the vacuum line -1- from the brake booster.

-- Cover the engine compartment near the Engine Control Module -J623- to prevent scratching the paint.

Fig 3: Identifying Bolts And ECM Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1- and remove the Engine Control Module -J623- upward.

-- Release and disconnect the connector from the Vacuum Sensor -G608-.

-- Thread the vacuum line with the Vacuum Sensor -G608- out toward the right.

Removing the Vacuum Sensor -G608- from the vacuum line

-- Release clips with pliers -1-.

Fig 4: Identifying Brake Booster Pressure Sensor G294, Clips And Pliers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully lower the Vacuum Sensor -G608- -2-.
