Overview - Brake System Vacuum Pump -V192-: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

FOR HYBRID VEHICLES

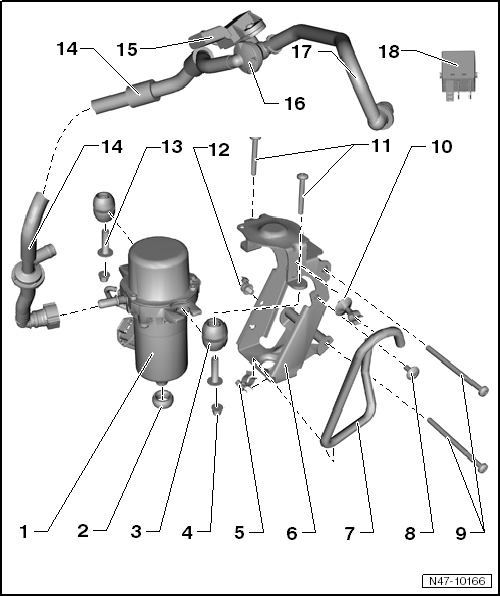

Fig 1: Exploded View Of Brake System Vacuum Pump Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Brake System Vacuum Pump -V192-

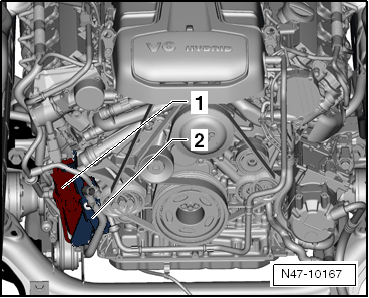

- Component location. Refer to Figure.
- Removing and installing. Refer to BRAKE SYSTEM VACUUM PUMP -V192-, REMOVING AND INSTALLING .
Lower Buffer
Adjusting Buffer
Hex Nut
- 7 Nm
Hose Bracket
Bracket
Exhaust Hose
TORX^® Bolt,
- 8 Nm
- Coolant pipe to bracket
TORX^® Bolt
- 9 Nm
- Bracket to mounting bracket
Clip
- Exhaust hose
TORX^® Bolt
- 7 Nm
Clip with Cable Tie
Sleeve
Vacuum Hose
- To the Brake System Vacuum Pump -V192-
Brake Booster Pressure Sensor -G294-
Check Valve
Vacuum Hose
- To the Brake Booster
Brake Booster Relay -J569-
- Component location. Refer to the appropriate Wiring Diagram.
