Brake System Vacuum Pump -V192-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Release the vacuum hose -A- and remove it in direction of -arrow-.

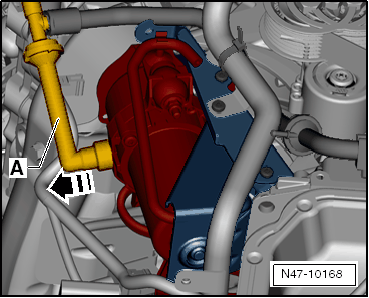

Fig 1: Identifying Vacuum Hose -A- Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the wiring harness from the bracket -C- and move it to the side.

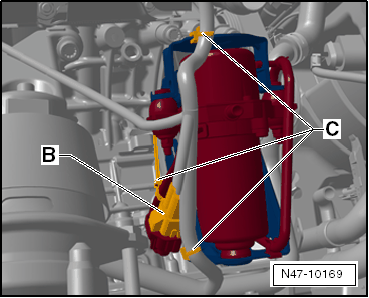

Fig 2: Identifying Wiring Harness -C- And Connector -B-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the connector -B- from the Brake System Vacuum Pump -V192-.

-- Remove the lower part of the connector from the bracket.

-- Remove the coolant pipe bolt -1- from the bracket.

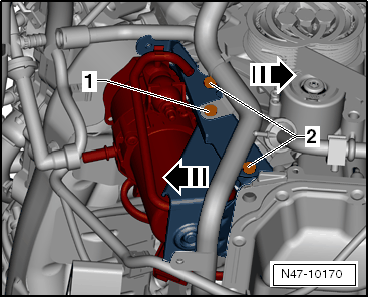

Fig 3: Identifying Coolant Pipe Bolt -1- & Bolts -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket bolts -2- from the mounting bracket by gently moving the coolant line back and forth.

-- Remove the Brake System Vacuum Pump -V192- together with the bracket.
