Brake Servo Tester :Vas6721, Connecting

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Brake Servo Tester:VAS6721

-- Remove the vacuum hose from the brake booster.

Pressing the brake pedal a few times beforehand makes it easier to remove the vacuum hose.

-- Connect the Brake Servo Tester:VAS6721 -see following illustrations-.

Fig 1: NO CONTENT

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item number	Component	Explanation
A	Shut-Off Valve	In Direction Toward The Vacuum Hose, The Check Valve And Vacuum Pump (If Equipped)
B	Shut-off valve	Opening the Brake Servo Tester:VAS6721 makes it easier to remove. Open to simulate an incorrect source Connect the Hand Vacuum Pump:VAS 6213 .
C	Shut-off valve	Toward the brake booster

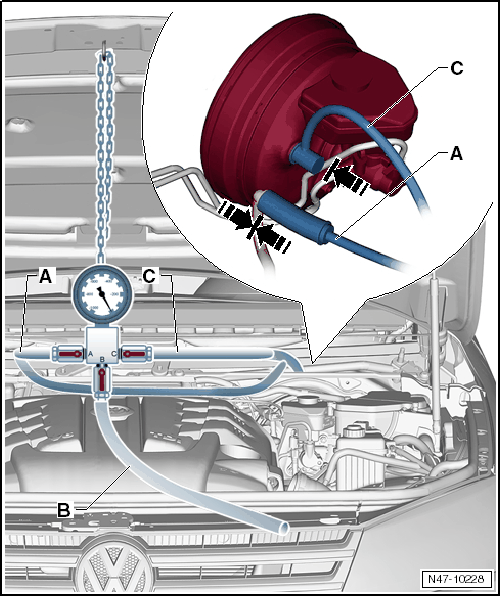

-- Connect the Brake Servo Tester:VAS6721 hose -A- too the vacuum hose and push the adapter -C- into the brake booster.

Fig 2: Connect The - VAS 6721- Hose -A- Too The Vacuum Hose And Push The Adapter -C- Into The Brake Booster.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
