Pressure Reservoir, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Bleed the pressure reservoir with the Vehicle Diagnostic Tester.

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

-- Remove the left underbody panel. Refer to UNDERBODY PANEL .

-- Remove the air line -1-.

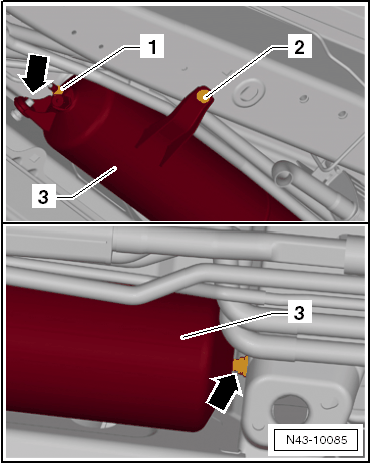

Fig 1: Identifying Accumulator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- and remove the pressure reservoir -3- from the retaining pin -arrows-.
