Pressure Reservoir, Filling
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
The pressure reservoir is filled using the Vehicle Diagnostic Tester.
There are two options for filling the pressure reservoir using the Vehicle Diagnostic Tester.
- Filling via the compressor
- Filling with nitrogen

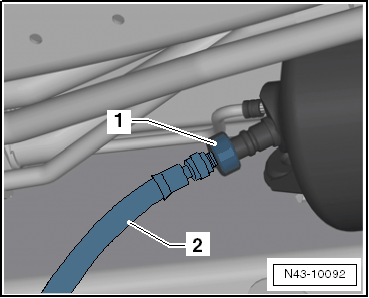

-- When filling with nitrogen, the tools must be secured to the pressure reservoir as shown in the figure.
- Air Spring Strut Adapter:T10157
- Nitrogen Charger Set:VAS6629A
