Left/Right Front Body Acceleration Sensor -G341- / -G342-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Release and disconnect the connector -1-.

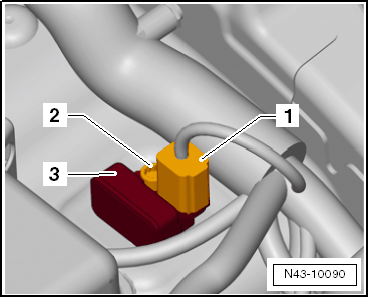

Fig 1: Identifying Front Body Acceleration Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unscrew bolt -2- and remove the Left Front Body Acceleration Sensors -G341- /Right Front Body Acceleration Sensors -G342- -3-.
