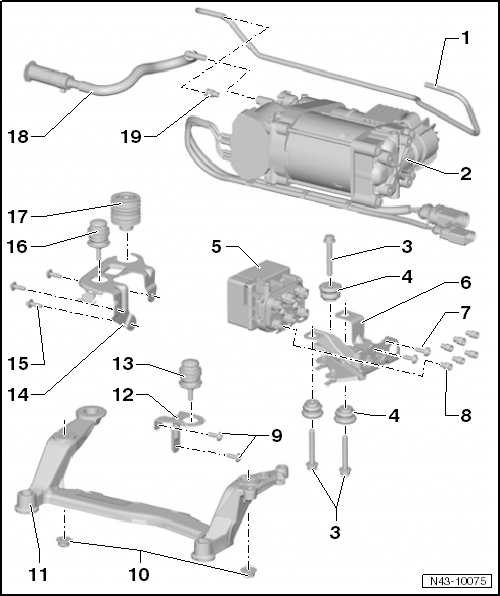

Overview - Compressor With Adaptive Suspension Valve Block -NX7-: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Air Line
- 4 Nm
- Between the Adaptive Suspension Valve Block -NX7- and the compressor
- Clean connections before loosening
- Air escapes when connections are unscrewed
- Protect threaded connection from dirt
- Supercharger
- Removal and installation without an Adaptive Suspension Valve Block -NX7-. Refer to COMPRESSOR WITHOUT ADAPTIVE SUSPENSION VALVE BLOCK -NX7-, REMOVING AND INSTALLING .
- Removal and installation with an Adaptive Suspension Valve Block -NX7-. Refer to COMPRESSOR WITH ADAPTIVE SUSPENSION VALVE BLOCK -NX7-, REMOVING AND INSTALLING .
- Cannot be serviced
- Bolt
- 5 Nm
- Damper Element
- Adaptive Suspension Valve Block -NX7-
- Removing and installing. Refer to ADAPTIVE SUSPENSION VALVE BLOCK -NX7-, REMOVING AND INSTALLING .
- Connector assignment of the air lines. Refer to Figure
- Bracket
- For the Adaptive Suspension Valve Block -NX7-
- Bolt
- 5 Nm
- Air Line
- 4 Nm
- Clean the line connection before loosening
- Air escapes when connections are unscrewed
- Protect threaded connection from dirt
- Bolt
- 5 Nm
- Nut
- 6 Nm
- Bracket
- For the compressor and the Adaptive Suspension Valve Block -NX7-
- Bracket
- For the compressor
- Rubber Bushing
- Replace only as a complete unit.
- Bracket
- For the compressor
- Bolt
- 5 Nm
- Rubber Bushing
- Replace only as a complete unit.
- Rubber Bushing
- Intake Manifold
- Air Line
- 4 Nm
- Between the Adaptive Suspension Valve Block -NX7- and the compressor
- Clean connections before loosening
- Air escapes when connections are unscrewed
- Protect threaded connection from dirt
