Compressor Without Adaptive Suspension Valve Block -NX7-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Bleed the pressure reservoir with the Vehicle Diagnostic Tester.

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to VEHICLE LIFT MODE .

-- Remove the right underbody panel. Refer to UNDERBODY PANEL .

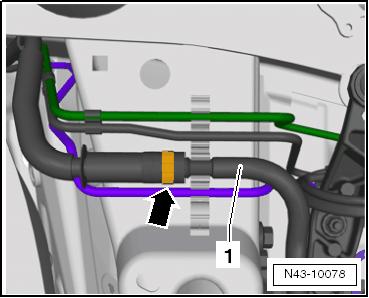

-- Remove the clamp -arrow- and disconnect the intake line -1-.

Fig 1: Identifying Intake Line

GWWN43-10078

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

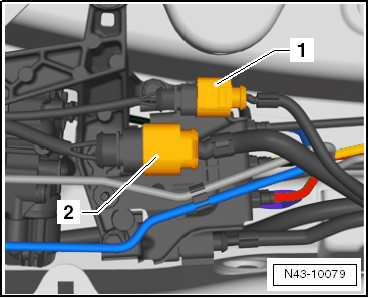

-- Disconnect the connectors -1 and 2- between the compressor and body.

Fig 2: Disconnect Compressor Connector

GWWN43-10079

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

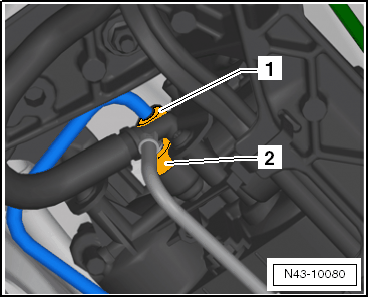

-- Remove the air lines -1 and 2- from the compressor.

Fig 3: Identifying Compressor Air Lines

GWWN43-10080

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

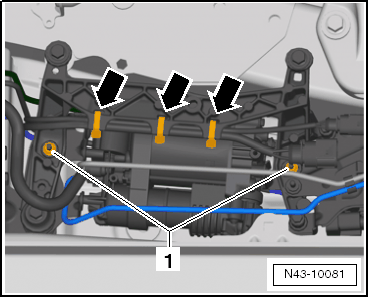

-- Remove the cable ties -arrows-.

Fig 4: Identifying Cable Ties

GWWN43-10081

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

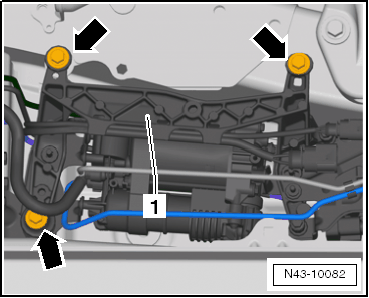

-- Remove the nuts -1- for the compressor.

-- Unscrew the bolts -arrows- and tilt the compressor and bracket -1- down and secure.

Fig 5: Removing Compressor And Bracket

GWWN43-10082

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the compressor and bracket at the front until the compressor can be removed.

CAUTION:

Make absolutely sure that the Adaptive Suspension Valve Block -NX7- is moved from the underbody as little as possible.
Furthermore, the air lines must not be kinked or stretched under any circumstance
