Wheel Alignment Specified Values
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
The specifications are valid for all engine versions
- PR number explanations. Refer to VEHICLE DATA LABEL .

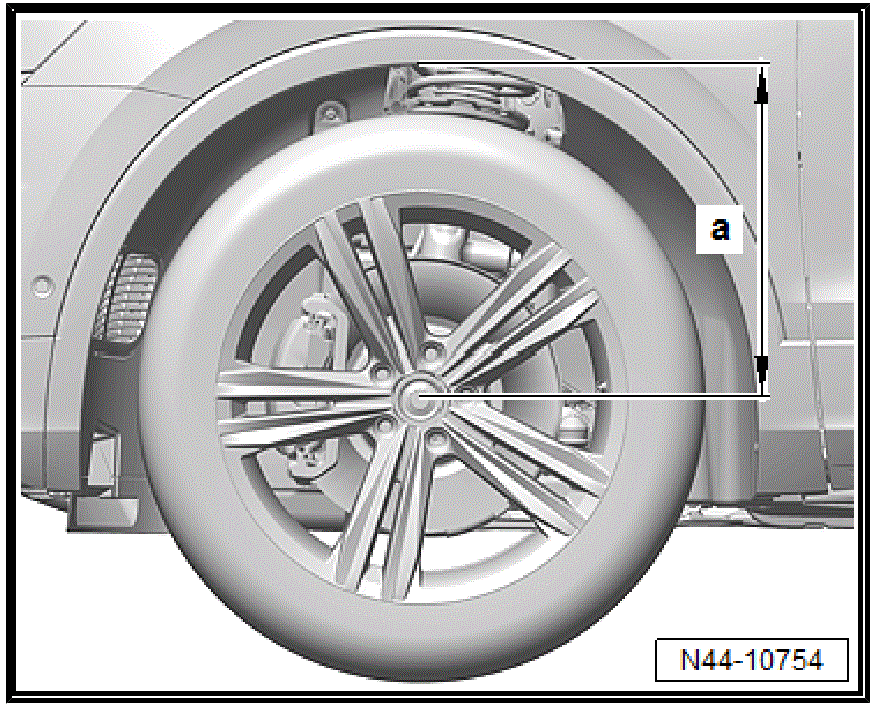

Standing heights listed in the table refer to dimension -a- .
| Front Axle | Steel Spring Shock Absorber | Air Spring Damper | ||
|---|---|---|---|---|
| PR Numbers | 1BA/1BE | 1BB | 1BK/1BY | 2MA |
| Toe-in per wheel (each wheel) | +5' ± 2.5' | +5' ± 2.5' | +5' ± 2.5' | +5' ± 2.5' |
| Maximum permissible difference between both sides | max. 5' | max. 5' | max. 5' | max. 5' |
| Camber (in straight-ahead position) | -15' ± 20' | -15' ± 20' | -15' ± 20' | -15' ± 20' |
| Maximum permissible difference between both sides | maximum 20' | maximum 20' | maximum 20' | maximum 20' |
| Caster angle | +8° 35' +10'/-30' | +8° 26' +10'/-30' | +8° 38' +10'/-30' | +9° 5' +10'/-30' |
| Maximum permissible difference between both sides | maximum 30' | maximum 30' | maximum 30' | maximum 30' |
| Standing height | 478 ± 10 mm | 488 ± 10 mm | 475 ± 10 mm | 450 ± 10 mm |
| Rear Axle | Steel Spring Shock Absorber | Air Spring Damper | ||
|---|---|---|---|---|
| PR Numbers | 1BA/1BE | 1BB | 1BK/1BY | 2MA |
| Toe-in per wheel (each wheel) | +10' ± 5' | +10' ± 5' | +10' ± 5' | +10' ± 5' |
| Maximum permissible difference between both sides | maximum 7' | maximum 7' | maximum 7' | maximum 7' |
| Camber | -1° 20' ± 20' | -1° 20' ± 20' | -1° 20' ± 20' | -1° 20' ± 20' |
| Maximum permissible difference between both sides | maximum 20' | maximum 20' | maximum 20' | maximum 20' |
| Standing height | 486 ± 10 mm | 502 ± 10 mm | 483 ± 10 mm | 458 ± 10 mm |
