Front Axle Caster, Adjusting: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Perform the Following Procedures:

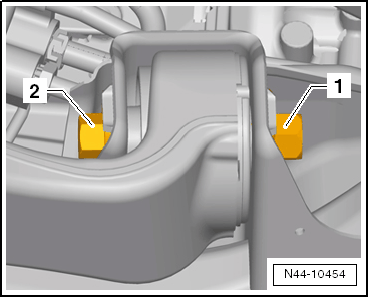

-- Loosen the nut -1- and adjust the caster by rotating the eccentric bolt -2- .

GWWN44-10454

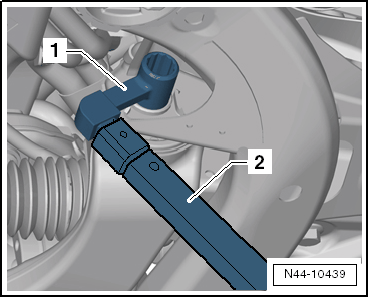

-- Tighten the nut for the caster adjustment bolt.

GWWN44-10439
  1. :T10188
  2. :VAG1332
