Identification Of The Adjustment Bolts Of The Distance Regulation Control Module 2 -J850-

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

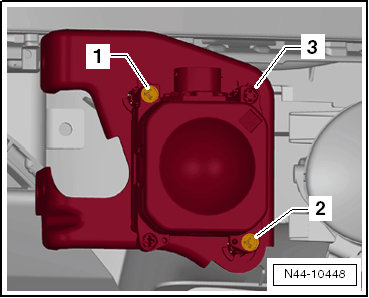

GWWN44-10448
  1. Adjusting Screw
  2. Adjusting Screw
  3. Must not be turned - functions only as a pivot point
WARNING:

The ACC adjustment is confirmed when "output diagnostic test complete" appears in the Vehicle Diagnostic Tester.
