Front Wheel Housing Liner: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

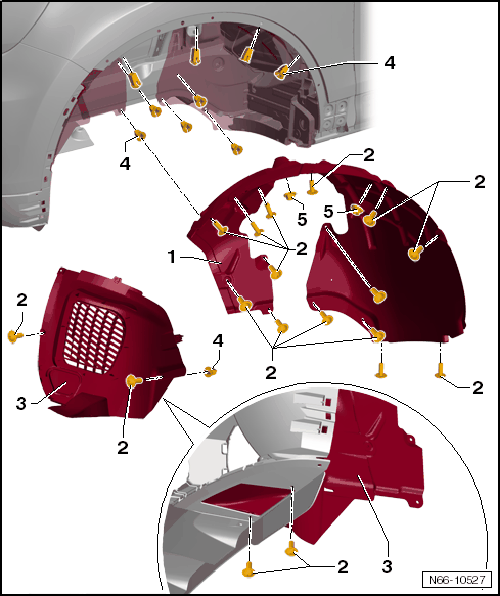

Check the expanding nuts -4- for damage and replace if necessary.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the front and rear wheel housing liners -1 and 3- in the fender.

-- Install the hex nuts -5- and bolts -2- and tighten in the specified order. Refer to BOLT TIGHTENING SEQUENCE .

-- Tightening specification for hex nuts -5- : 2.5 Nm.

-- Tightening specification for bolts -2- : 2 Nm.
