Front Wheel Cover, Removing And Installing: Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

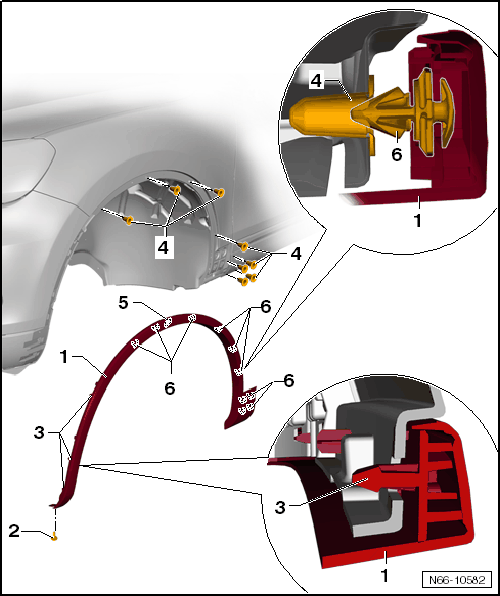

Install in reverse order of removal. Note the following:
-- Replace all cut and damaged clips -6- and grommets -4-.
-- Use the centering pin -5- to align the cover -1- on the vehicle.
-- Press the cover -1- with the clips -6- into the grommets -4- on the vehicle.
-- Press the retaining hooks -3- into the bumper.
-- Tighten the bolt -2-.
